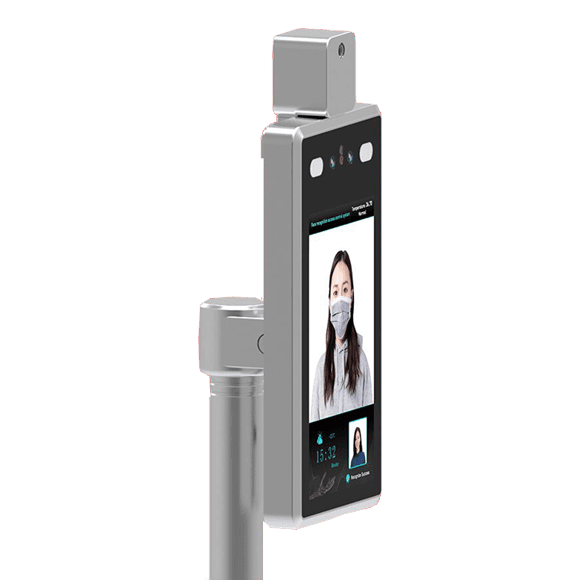

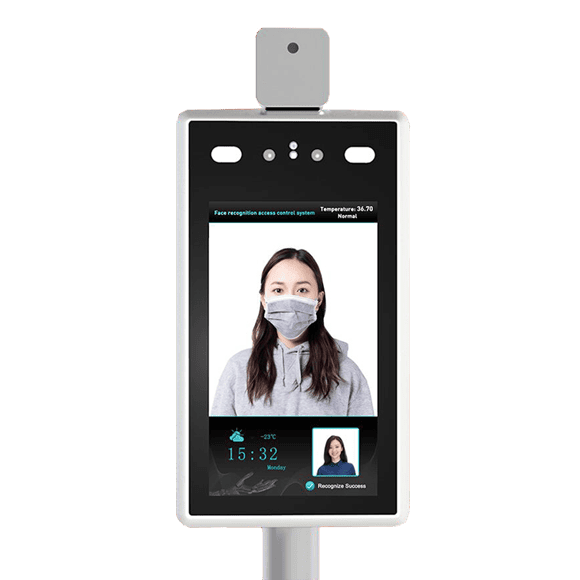

Face Recognition Temperature Reader
The 7 inch Face Recognition Temperature Reader is a perfect combination of traditional applications based on face recognition and infrared temperature detection. Suit for hotels, access gates, office buildings, schools, shopping malls, communities, public services.
Features
-
01 Face Recognition
Support binocular live detection technology, effectively prevent attacks such as photos, videos, models, 99.5% recognition rate, face recognition time <500ms. Support 22400 face comparison library.
-
02 Temperature measurement
Temperature measurement accuracy ± 0.3 ℃. Best detection distance 0.4 meters.Support abnormal temperature alarm.
-
03 Data traceability
Support up to 100,000 data storage and export, data traceability
Specifications
-
Hardware Chipset Hi3516DV300 System Linux operation system RAM 16G EMMC Image sensor 1/2.7" CMOS Lens 4.5mm Face Recognition Height 1.2-2.2 M, angle adjustable Distance 0.5-2 Meters View angle Vertical ±40 degree Reco. Time ＜500ms Interface Internet interface RJ45 10M/100M Ethernet Weigand port Support input/output 26 and 34 Alarm output 1 channel relay output USB port 1USB port (Can be connected to ID identifier） -
Camera Parameters Camera Binocular camera supports live detection Effective pixel 2Mega pixel，1920*1080 Min. lux Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 SNR ≥50db(AGC OFF) WDR ≥80db Temperature Range 30-45（℃） Accuracy ±0.3（℃） Distance 0.3-0.8m Response time ＜300ms General Working temperature 0℃ ～ +50℃ Weight 2.1 kg Column aperture 33mm
