Android 7.1
-
Octa-core 2.5GHz
-
5.5” screen
-
3GB RAM/32GB ROM
-
4G/Dual-band Wi-Fi
-
RFID
-
UHF
-
High-performance scanner
CILICO Lotus Series™
Making nursing work more efficient！
The trustworth choice of over 500+ medical institutions
The Trustworth Choice of over 500+Medical Institutions
-
RFID
-
UHF
-
Dual-band Wi-Fi
-
Antibacterial material
-
10 hours battery life
-
MDM
Especially designed for medical industry
Open interface design matches the all medical information systems
Supports ROM customization
The enclosure is made of medical antibacterial material and support alcohol rub clean.
Excellent scanning performance increases your working efficiency
Highly Integrated
Extremely Thin

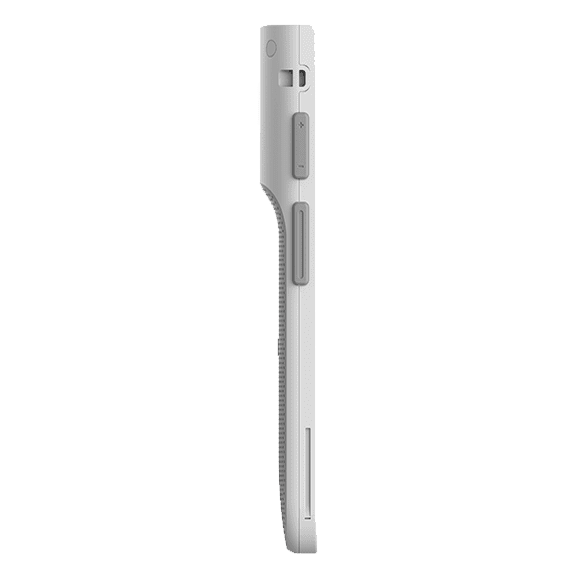

12.9mm ultra-thin light grip body greatly reduces nurse's wrist fatigue
High integration of 1D / 2D scanning, RFID reading and writing, fingerprint recognition etc.
Read quickly and accurately patient wristbands, infusion bags, test orders etc.
Quick charge ultra-long standby time
CILICO IoT OS fast charging solution
2.5 hours fast filling
Optional use with cradle
4200mAh battery capacity
10 hours of super-long battery life to ensure
sufficient work power
Mobile Devices Management System
IoT OS system
One-click mobile devices management, software startup, face recognition login, voice walkie-talkie, emergency flashlight .........
Rich functions make device management more efficient and device operation more convenient!
-
Mobile Nursing
-
Pharmacy
-
Baby Anti-theft
-
Surgery
-
Dispensing
-
Vaccine
-
Physical Parameter Size 160×76 ×12.9 mm (L×W×H) Weight 235g (including battery) Display 5.5 inch
IPS screen Resolution: 1920x1080Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported Backlight LED Backlight Battery Li-polymer, 4200mAh 3.8V
Working up to 8 hours
Standby up to 280 hoursCard slot 1 slot for SIM
2 slots for PSAM
1 slot for Micro SD (Maximum 128G)Communication interface Micro USB 2.0, OTG Network connections 4G/3G/2G、Wi-Fi、GPRS、 Bluetooth、GPS、 BDS、GLONASS Keyboard On-screen Keyboard+3 Virtual Keys: Back, Home and Menu Performance CPU Octa-core 2.5GHz OS Android 7.1 Memory 3GB RAM/32GB ROM Communication WWAN GSM/GPRS/WCDMA/CDMA/TD-SCDMA/TDD-LTE/FDD-LTE Wi-Fi Wi-Fi frequency: 2.4GHz & 5GHz
Wi-Fi protocol: 802.11a/b/g/n/acGPS GPS/BDS/GLONASS Bluetooth Bluetooth 4.2 -
IoT Functions NFC Operating frequency: 13.56MHz
Support protocol: MifareClassic (MF1), NDEF, NfcV (15693), Ultralight (MF0), IsoDep (Quas:CPU MF3), IsoDep (CPU)
Reading distance: 0-5cm (depending on the card type)RFID Operating frequency:
US: 902-928MHz; 4 - 30 dBm (EIRP)
EP: 865-868MHz; 4 - 30dBm (EIRP)
Support protocol: ISO18000-6C/EPC C1G2
Reading distance 80cm
(depending on the tags and environment)Security PSAM Supporting ISO7816 standard
Supporting 2 PSAM cardsSensors Light sensor, proximity sensor, gravity sensor, Hall sensor (optional) Camera Camera Front camera：2-megapixel
Rear camera：8-megapixel
Auto-focusing ; with LED light, support flashlightBarcode Scanning 2D Scanner Zebra/Honeywell scanning engine 1D Symbologies UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128,GS1-128, ISBT 128, Code 39,Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5,Inverse 1D,GS1 DataBar, Composite Codes, etc. 2D Symbologies PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QR inverse, Aztec,Aztec Inverse, Postal Codes: US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code, USPS 4CB/One/Intelligent Mail, UPS FICS Postal , etc.
-
