CM900 UHF Reader

CILICO CM900 is a newly developed UHF reader, based on R2000 solution, which has excellent RFID reading and writing performance. The UHF RFID reading distance up to 17m (depending on the label and antenna). 5700mAh battery ensures sufficient working power. Support RFID reading and barcode scanning. It can be used alone or connect with your management system.

Get Quote

Position： Index > Products

Features
Specifications
Downloads
Accessories

Get Quote

UHF
RFID
Bluetooth 4.1
High-performance scanner
Universal adaption
5700mAh Battery
Fast charging
Mass storage

Ultra-long UHF RFID reading

Adopt industry leading IMPINJ R2000 solution,
5700mAh battery capacity can ensure the working time
Reading distance up to 17 meters

Powerful multiple tags reading

        Multiple reading speed ≥ 200 tags/s
        Realizing batch data reading
        Increasing efficiency for enterprises

High adaptability & High compatibility

Seamlessly adapt to CILICO’s full line of mobile terminals and mainstream consumer mobile phones, save your operation costs

Can connect with mobile terminals or management system through Bluetooth to realize real time data uploading

RFID & Barcode Scanning

One-Button Switching

Support independent use

Large offline storage

Can be used alone

Connect your management system

It can store 1000 barcodes /100000 RFID tags offline

and support bulk data uploading

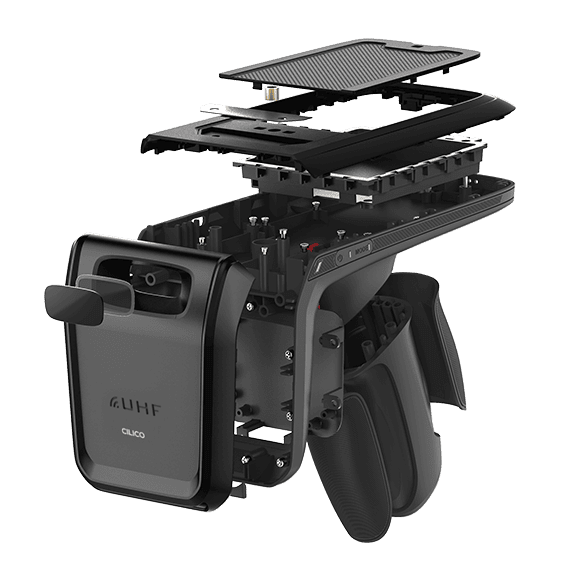

CM900 is the result of long practice and hard work

stable construction design

PC material support abrasion resistant and shockproof

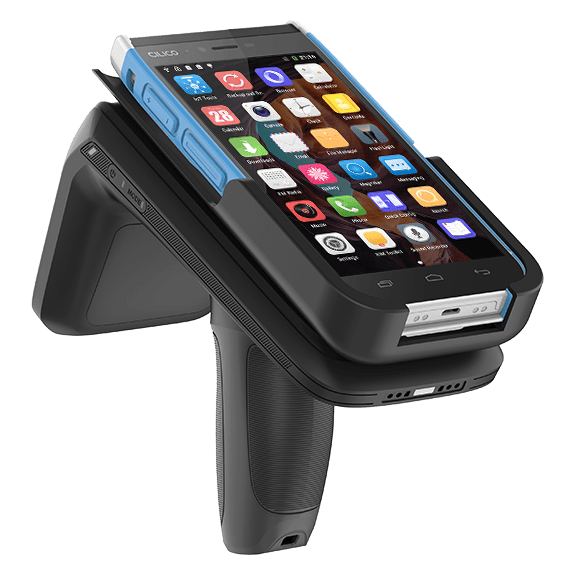

Universal Adaption

Adapt to all CILICO mobile computers and consumer phones to save your operating costs

Applications

CM900 RFID Reader is widely deployed in warehouse management，logistics, manufacturing, inspection, access control, retail etc.

Manufacturing
Airport Cargo
Logistics
Retail
Warehouse
Inspection

Specifications

Physical Parameter
Size	172mm×87mm ×125mm (L×W×H)
Weight	400g (including battery)
Battery	Li-polymer, 5700mAh, removable Up time: 8 hours Standby time: 300 hours
Communication interface	Type-c
Communication	Bluetooth

Data Collection
Barcode Scanning (optional)	1D/2D Barcode

Communication
Bluetooth	Bluetooth 4.1

IoT Functions
RFID	Frequency Range: US: 902-928MHz EU: 865-868MHz JP: 916-921MHz (wLBT) JP: 916-923MHz
Standards Supported	ISO18000-6C/EPC C1G2
UHF Solution	IMPINJ R2000
Multi-reading Rate	200+ tags/sec
Batch Mode Memory	Store 100,000+ RFID Tags, 1000 barcodes
Reading distance	10m (depending on the label and antenna)

Downloads

Documents & Manuals
- CM900 Long distance RFID Reader PDF
