- 1D barcode
- Windows
- Android
- 1.2m fall
Features
-
01 The upgraded CT10X support three operating systems
Bluetooth connection without PIN.
Wireless transimission distance 60m.
Setting the bluetooth transimission speed easily by scanning a barcode.
Easy to call the IOS input keyboard.
Pairing with another device can be easily realized by operating barcode scanner. -
02 Auto-induction scanning
The scanning window's light microscope using a special steel material, It has stronger resistance to breakage, the transmittance speed is quicker, make further depth.
The scanning module using high performance chip, high sensitivity, scanning speed is very fast, accurate and efficient for a variety of one-dimensional code decoding. -
03 More humanized design
By using ABS thickening material,CT10X already passed professional testing, industrial fall dozens of times still maintain a stable product performance, with a strong anti seismic capacity.
Mechanical buttonto quickly rebound, relaxed and comfortable, the button life can reach more than 10 million times.
Equipped with convenient and efficient operation, CT10X can change settings such as bar code data transmission format, data set, bar code type by reading the barcodes, meet the demand for more enterprise.

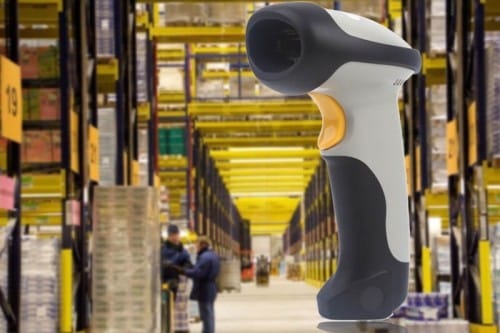

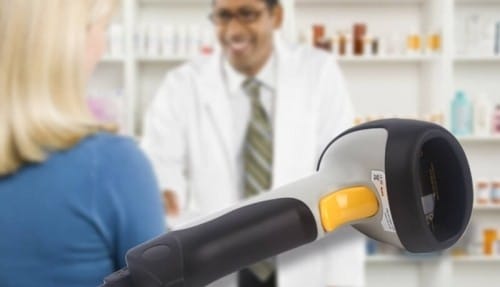

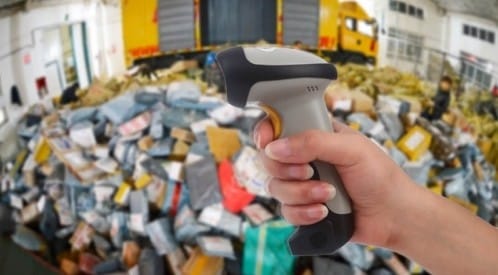

Applications
Supermarket retail, public utilities, O2O e-commerce payment
-
Retail
-
E-commerce
-
Government
Specifications
-
Basic Parameters Connection mode Bluetooth 3.0 decode mode Single-line scan Light source Laser light 650± 20nm Radio range 60m open field Storage 256Kb, more than 2600 messages can be stored Communication transmission HID and SPP dual mode data transmission under the wireless bluetooth 3.0 protocol Support system Windows, Android,iOS Bluetooth Covering Range 60M -
Electrical Parameters Voltage DC 5V Safety of laser National level 2 Laser safety standards Electromagnetic compatibility CE&FCC&FDA Quiescent current 15mA Working current 50mA Physical Parameters Size 160mm * 70mm * 92 mm (L×W×H) Power supply Built-in chargeable Li-ion battery, 1800mAh Weight 175g
