• GMS
  • Android 11
  • Octa-core 2.0GHz
  • 5.72”screen
  • 4GB RAM+64GB ROM
  • 2.4GHz&5GHz/Dual-band Wi-Fi
  • IP67
  • High-performance scanner

Innovative technology smooth and more efficient operation

C80 is equipped with Octa core 2.0GHz CPU and Android 11 OS with GMS certified, which is smooth, more secure and super experience

With 4GB RAM+64GB ROM large memory, it works smoother multitasking

Highly integrated scanning, NFC, PSAM in such small impact size

A variety of scanning engine options to deal with all kinds of impossibilities

Rebuilt classic 360° super protection strong and durable

IP67, 1.5 m drop resistant, special designed for harsh environments

It is easy to deal with during bad weather such as rain, snow and fog

Innovative batteries 24 hours full day working freely

4600mAh large-capacity battery which can last for more than 12 hours

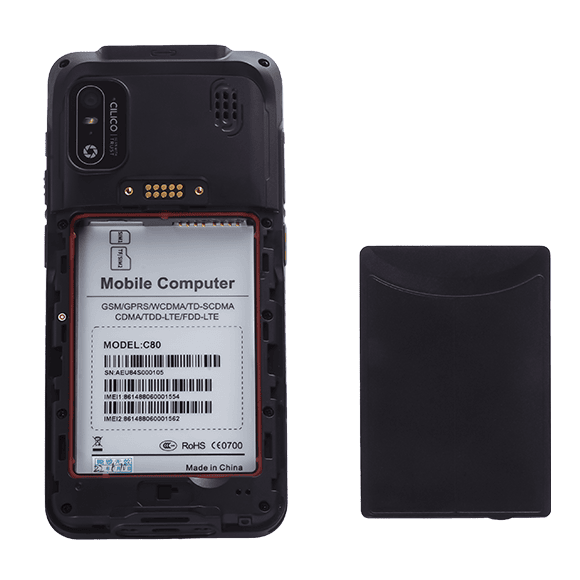

Removable battery, supporting hot swap battery and 24hours never power off

Light and large vision with easy and free hand contro

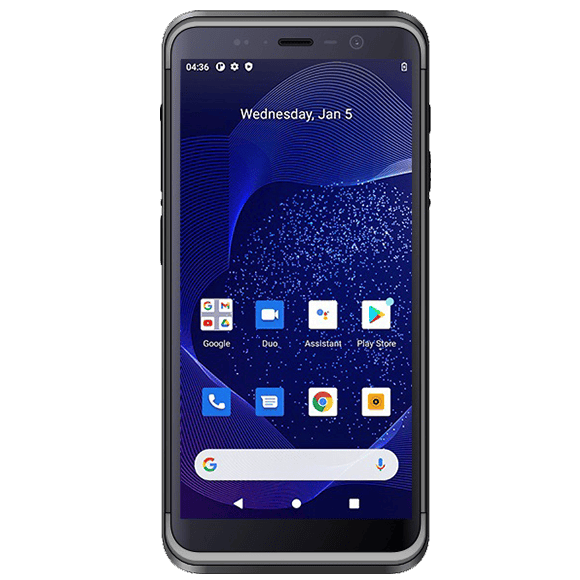

5.72 inch full-view HD touch screen for smooth vision and easy reading

It can be used smoothly in wet hands, gloves and complex environments

Light device body can be operated by one hand comfortable and convenient

Highly integrated design for widely industry applications

 Comprehensive management software Customized ultimate experience

 CILICO self-owned iVYAi management system, successful to achieve all the global devices management

 Independently customized loT OS development service kit to offer u the super user experience

 ecoding performance and fast reading ability make sure quickly and accurately read on screens, papers and wristbands

Intimate design super user-experience

Only One - click, easily access to required applications

Double MIC design, call quality better

Innovative industry product, highly-integrated temperature measurement and pupil lamp, more focused and professional

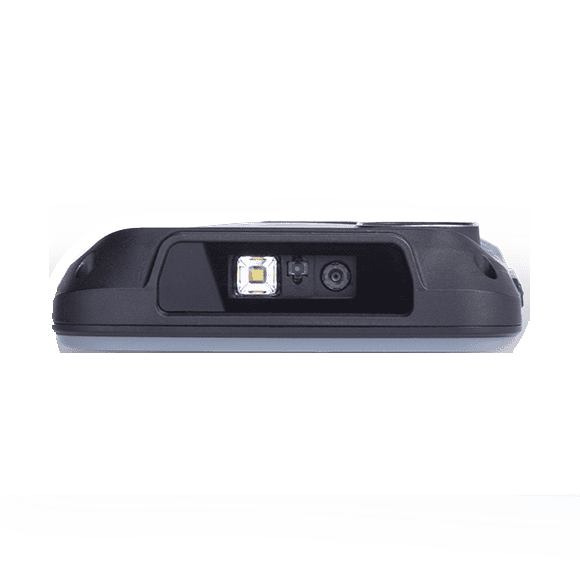

High Performance 2D Scanner

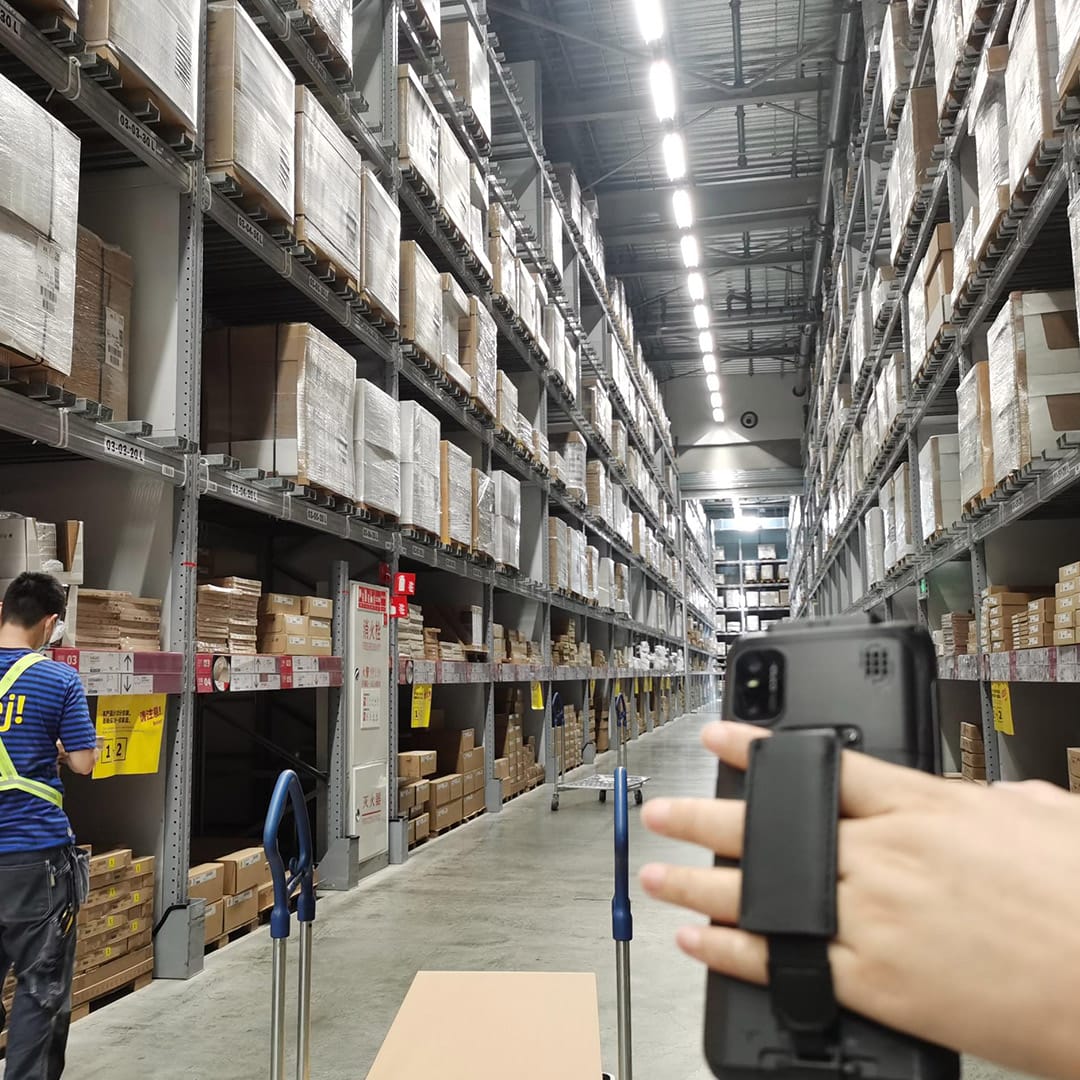

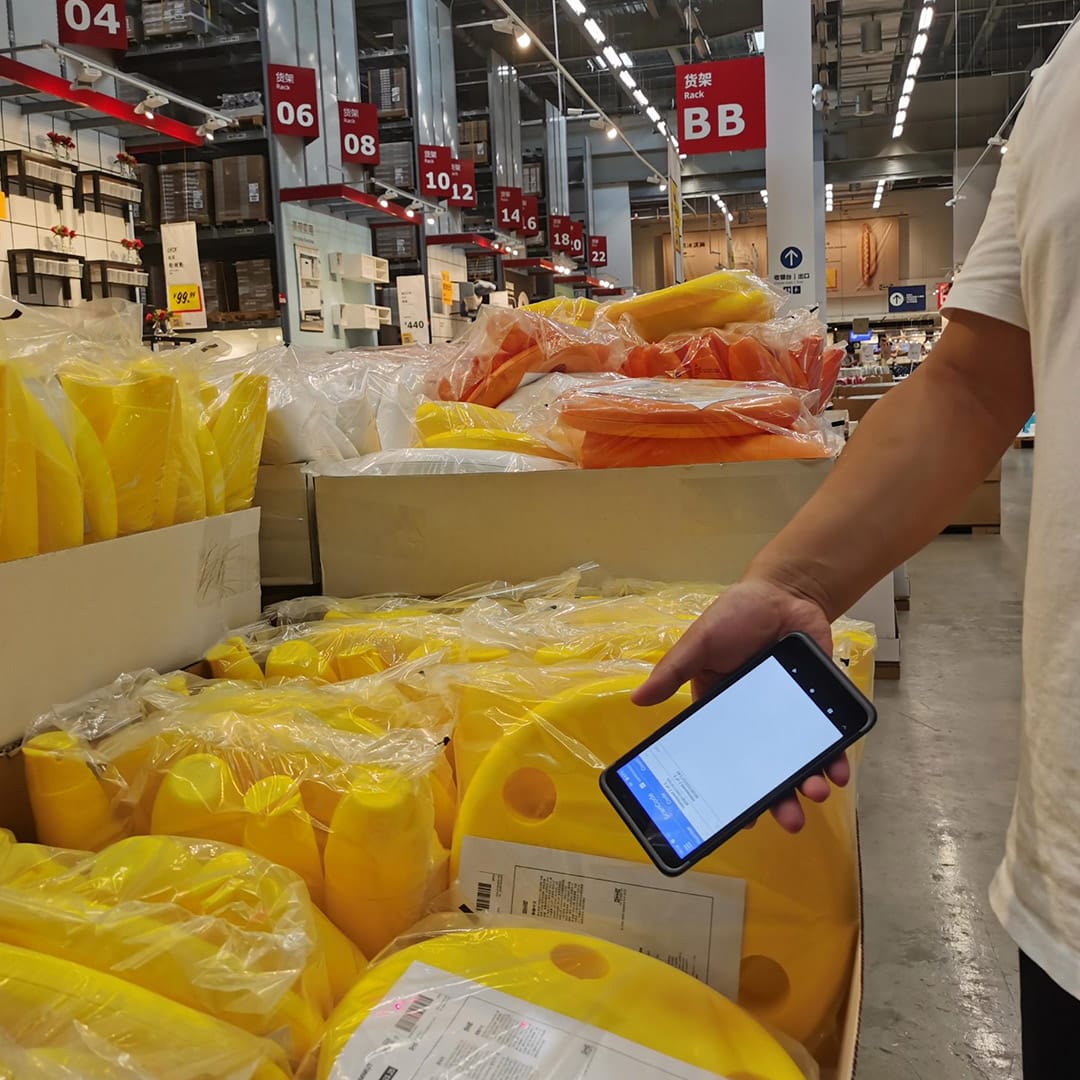

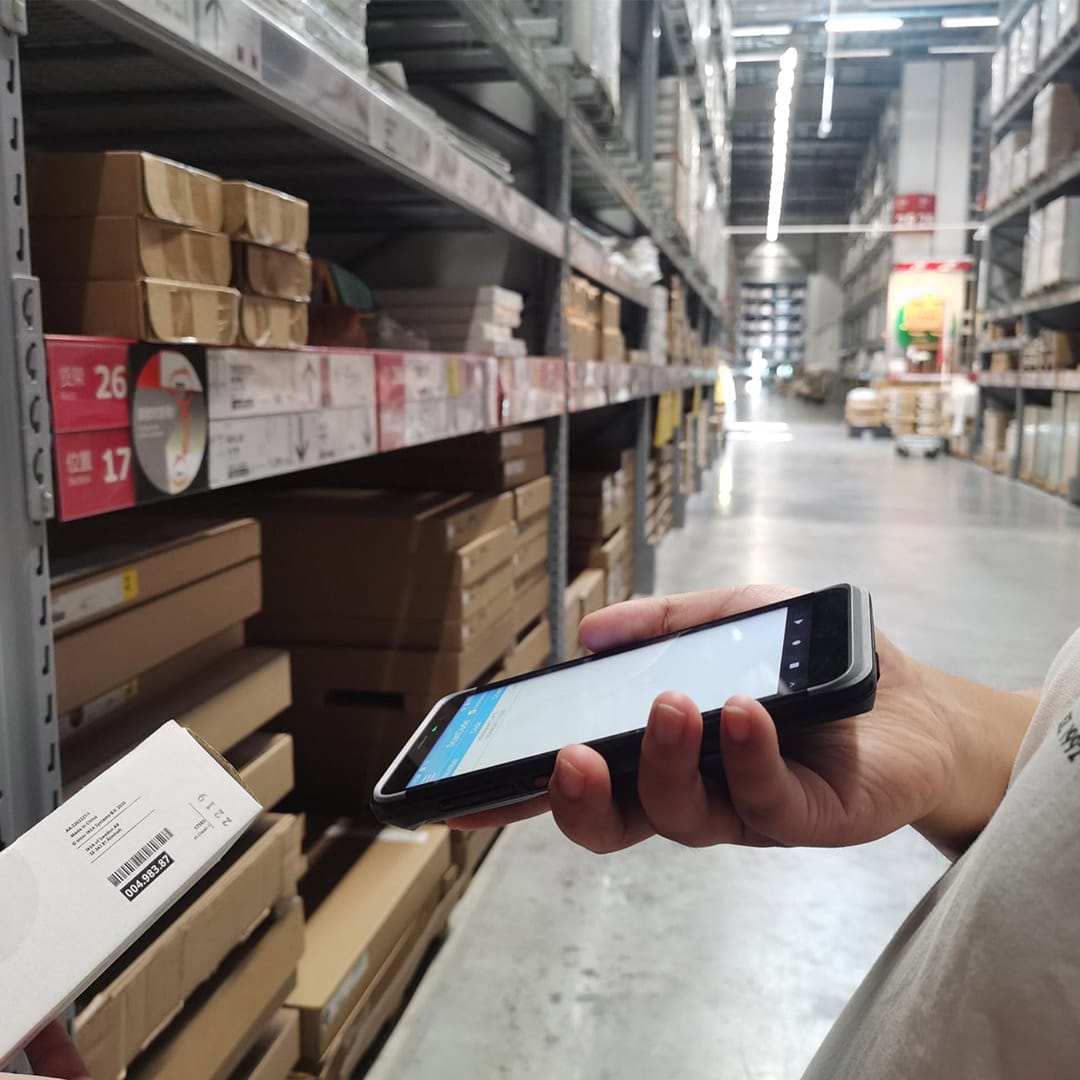

C80 series mobile computers are widely deployed in logistics, transport, healthcare, retail, manufacturing, warehouse management, attendance management etc.
  • Healthcare Healthcare
  • Logistics Logistics
  • Manufacturing Manufacturing

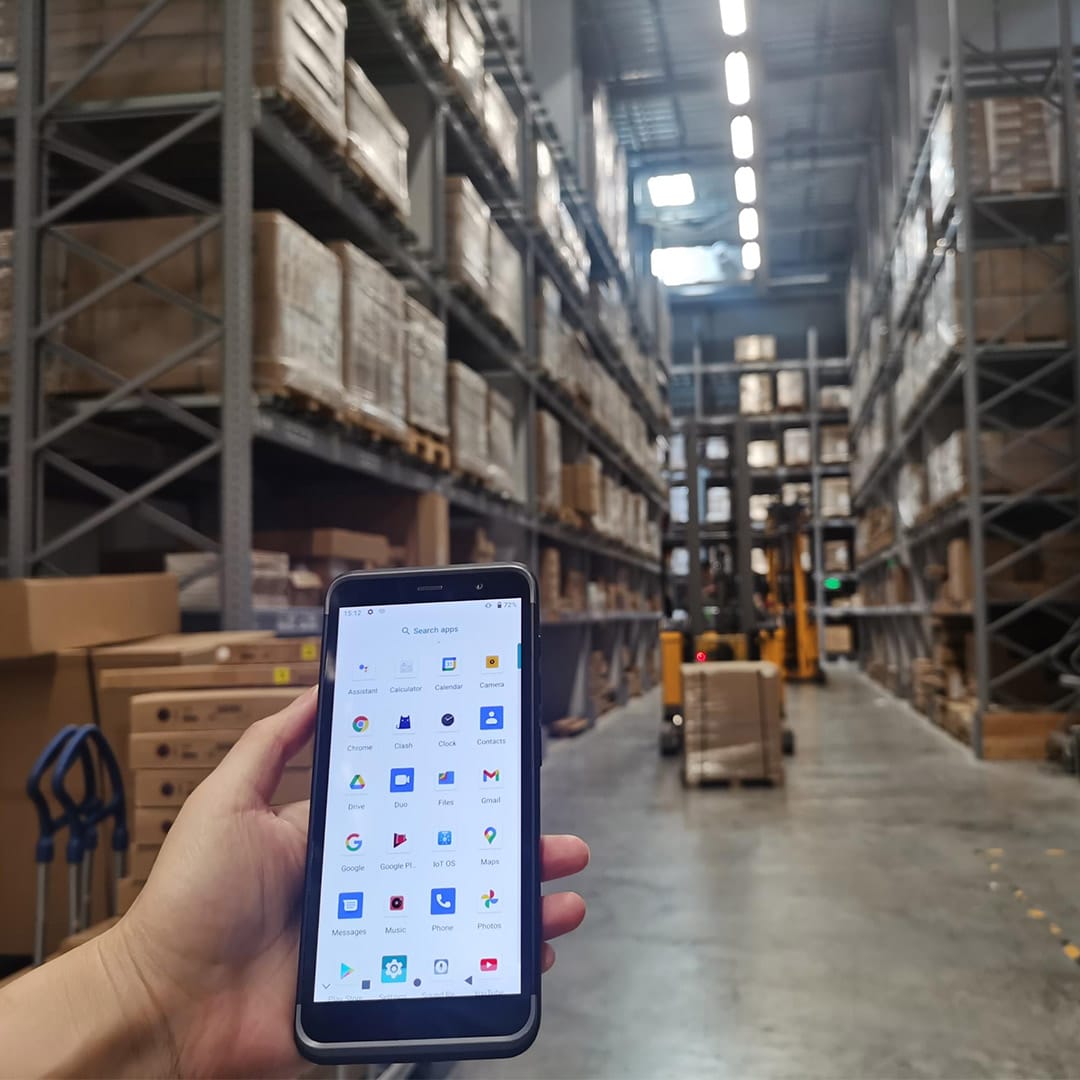

  • Warehouse Warehouse
  • Ticketing Ticketing

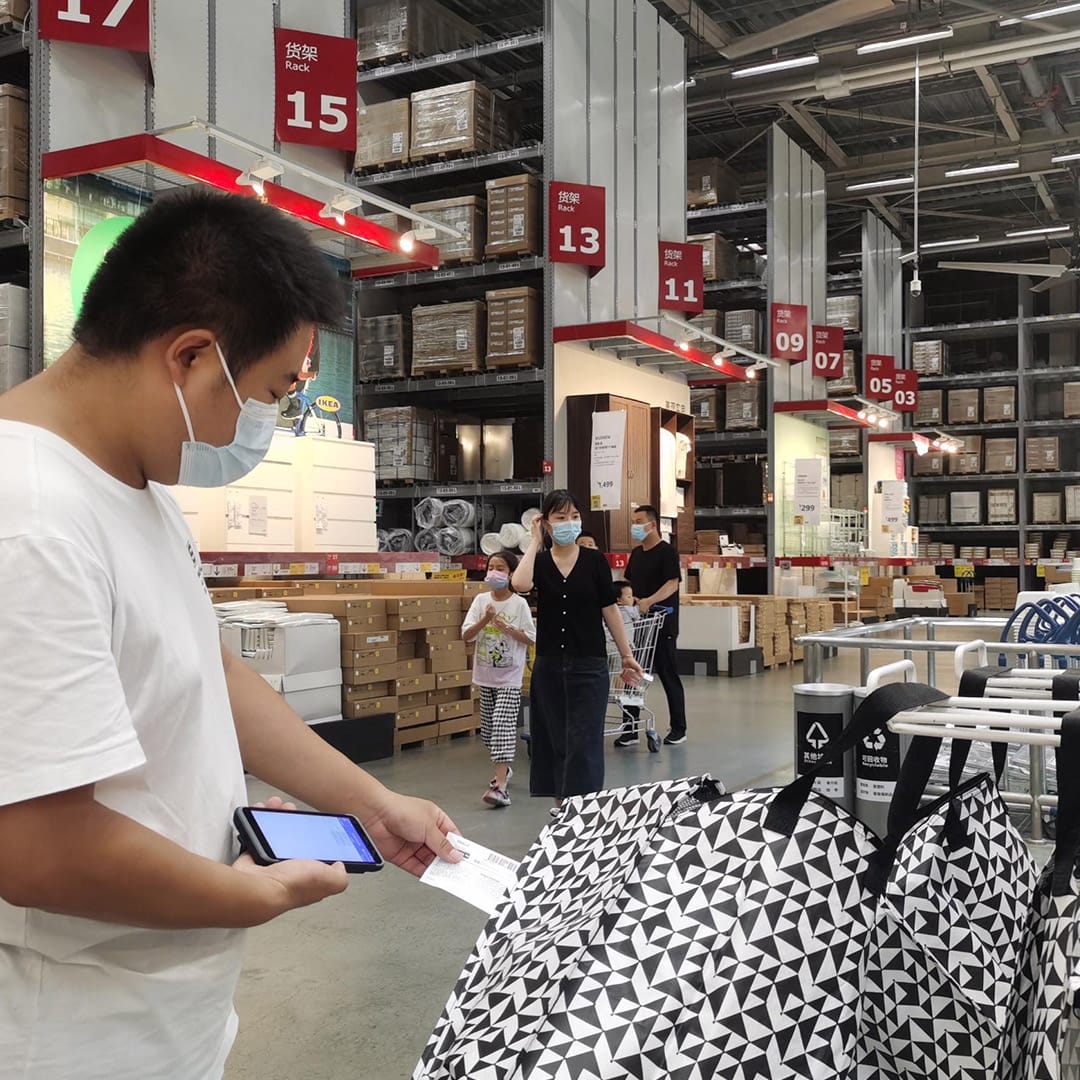

  • Retail Retail
  • Basic Parameters
    Size 162X76.8 X 13.9mm
    Weight 252g(including battery)
    Display 5.72inch 18:9 HD+(1440*720)
    Touch panel Gorillaglass, plated with anti-fingerprint film, supports wet hand operation
    Backlight LED Backlit
    POWER 4600mAh , 3.8V removable lithium battery; spare battery(optional): 150mAh More than 8hours working time, and standby time 300hours
    SIM SIM+TF: nanosim+nanosim/TFCard
    USB port Type-c, Support OTG
    Network connections 4G/3G/2GsWi-FisGPRS
    Notification CueTone; multi-color led; Vibration
    Keyboard 3 virtual buttons: Backs Home、Menu
    Audio frequency A microphone, speaker, receiver
    Working environment
    Operating temperature -20℃ to 55℃
    Humidity 5% to 95% (Non-condensation)
    Drop specification Within the working temperature range, it can withstand repeated falls from a height of 1.5 meters to the concrete floor
    Roll Specification Can Withstand 200 times 1.6 ft/0.5 m rolling impact; meets or exceeds IEC
    Vibration Random(10 Hz-30KHz);60 minutes per shaft
    Electrostatic protection +/- 10kv air discharge +/-6kv contact discharge
    Protection level IP67
    Wireless Communication
    WWAN Asia + Europeband: GSM:Band2/3/5/8 WCDMA:Band 1/2/5/8 TD-SCDMA:
    Band 34/39 CDMA:Band BCO TDD-LTE:Band 34/38/39/40/41 FDD-LTE:
    Band 1/3/5/7/8/20
    American band:
    WCDMA:Band 1/2/4/5 CDMA:Band BCO
    TDD-LTE:Band 40/41
    FDD-LTE:Band B1/2/4/5/7/28A/28B
    WIFI Wifi Frequency:2.4GHz&5GHz Protocol:802.11 a/b/g/n/ac/r/e/i
    Fast Roaming
    navigation Beidoux Glonass、GPS、GalileOxQZSS
    Version Bluetooth 5.0
    1.No reaction when putting the NFC card close to the device.  Step 1: Please make sure that the card-reading function is opened;
    Step 2: Check whether the frequency of the card matches well with the protocol; ( Currently, it only supports high-frequency card including MF0,MF1,15693,CPU).
    2.There is light emitting from the scanning head but fail to scan. If it fails to scan suddenly in use, the same setting of the scanning head and the barcode to be scanned may possibly result in it. If you change the setting of the scanning head unintentionally, you are supposed to scan other types of barcodes and send the result feedback to Cilico.
    3.The left and right scanning button fail to work or only one side button could work Step 1: Please make sure that the left and right scanning options are opened;
    Step 2: Close the scanning type APP;
    Step 3: Try to scan with system scanning option; if it works, then the device is working properly.
    4.What am I supposed to do when the reflash process is interrupted? Step 1: Disconnect USB;
    Step 2: Take out the battery and install the battery agian;
    Step 3: Repeat reflash process.
    5.The device fails to charge. Step 1: Change the battery or charge with the USB cable  and try to start up;
    Step2: If it still fails to charge to start up after changing the battery, it is possible that the battery is over discharged. Please keep the charging connection with USB cable, then take out the battery and instsall again, activating the battery by repeating 3-4 times. Try to start up after charging for 30 minutes.
    6.Why does the device enter factory mode when it is turned on. The possible cause is that the volume - key is pressed when the phone is started up. You can press the Volume - key or select Restart and press the power button to restart the phone.
    7.What is the best distance for bar code scanning The optimal scanning distance depends on the size of the bar code. The optimal scanning distance of the large bar code will become longer, while the optimal scanning distance of the small bar code will become smaller. Generally, the optimal scanning distance is between 10-15cm.
    8.How do I access the Developer options In Settings/About Phone, click on the Build number 5 times to exit About Phone and Click on system-Advanced in order to see the developer options.
    9.The kind of protocol used by UHF International standard 18000-6C protocol used
    10.How do I view the device version Enter from device, click Settings - About Phone - Build number
    11.How do I restore the device to factory Settings Device interface click Settings - System - Reset Options - Erase all data(factory reset)
    12.Why can't the device recognize the phone card and access the Internet by phone Step 1:Ensure that the mobile phone card is installed in the SIM card slot
    Step 2:Ensure that the data traffic switch Settings - Traffic Usage - Carrier-data switch are enabled
  • Performance Parameter
    CPU Octa-core 2.0GHz
    OS Android 11
    Memory Standard 4GB+64GB (LPDDR4X+EMMC), Option 3GB+32GB/6G+128G
    Data Collection
    Scanning engine Professional scannersone/two-dimensional barcode
    Supported ID barcode types UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code 128, GS1-128,ISBT 128, Code 39,Trioptic Code39, Code32, Code 93, Code 11, Interleaved 2 of 5,Discrete2 of 5,Codabar,MSI,Chinese2 of 5,Korean 3 of 5, Matrix? of 5,Inverse 1D,GS1 DataBar,Composite Codes
    Supported 2D barcode types PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,
    QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse, Postal Codes:
    US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal,
    Netherlands KIXCode,USPS 4CB/One/lntelligent Mail,UPS FICS Pstal
    Cmera Front:5MPFF Rear:13MP AF, and2MP FF secondary camera(optional)
    Internet of things function
    NFC working band:13.56MHz Support Protocol: MifareClassic (MFI) NDEF, NfcV (15693) ,Ultraligh(MF0), IsoDep (CPU MF3) JsoDep (CPU) Read Distance:0-5cm
    Security PSAM Supporting ISO7816 standard, supporting 1PSAM cards
    Sensors Light Sensor, distance sensor, gravity accelerometer, geomagnetic sensor, Hall Effect Sensor (Optional)
    Certification CE/CCC/UN38.3/ROHS/IP67
    Standard accessories 5V/2Aadapter/Data cable/battery/quick guide/UHFtesttag

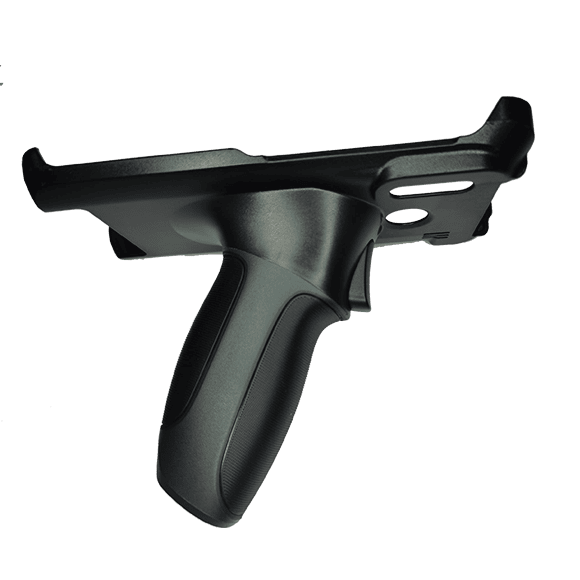

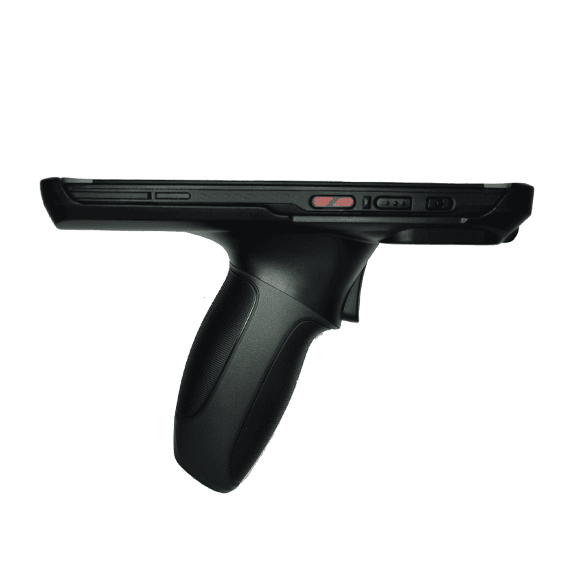

    Optional accessories Charging cradle/charging cradle adapter/battery/temperedglass/hand strap/pistol grip/lanyard
