Cilico C80HC medical handheld terminal
Cilico Aurora C80HC medical handheld terminal is specially designed for the medical industry. It integrates temperature measurement and pupil light in an innovative industry to make medical work more efficient. A variety of scanning heads are freely and flexibly matched to help medical staff easily deal with different segmentation scenarios such as mobile nursing, emergency center, drug management, material tracing, SPD, etc.
-
GMS
-
Android 11
-
Octa-core 2.0GHz
-
5.72”screen
-
4GB RAM+64GB ROM
-
2.4GHz&5GHz/Dual-band Wi-Fi
-
IP67
-
High-performance scanner
Large screen
5.7-inch full screen, more content with one page

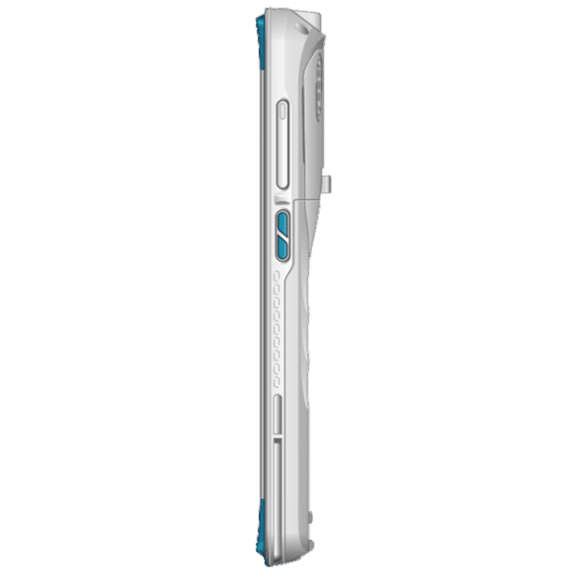

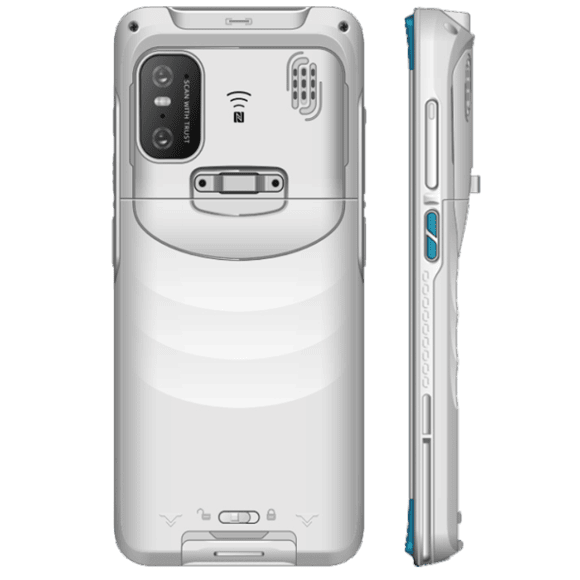

Slim design, comfortable grip
14mm thickness body, Blue texture in back, more friction
Sturdy and durable
1.5m anti-drop, dual color injection housing
Sturdy protection for screen and internal components
Medical grade antibacterial shell, can withstand disinfectant
New generation medical smart terminal
Strong signal, stable running, rapid scanning, easy operation
Highly integrated design for widely industry applications
Barcode/RFID/PSAM/NFC/Camera
Long lasting battery
4600Mah removable battery can work a full day
Worry free battery life during shift change
Applications
C80 series mobile computers are widely deployed in healthcare, Related applications, mobile nursing, surgical management, quilt management etc.
-
mobile nursing
-
surgical management
-
quilt management
-
drug management
-
static distribution center
-
health care
Specifications
-
Basic Parameters Size 162X76.8 X 13.9mm
Weight 252g(including battery)
Display 5.72inch 18:9 HD+(1440*720)
Touch panel Gorillaglass, plated with anti-fingerprint film, supports wet hand operation
Backlight LED Backlit
POWER 4600mAh , 3.8V removable lithium battery; spare battery(optional): 150mAh More than 8hours working time, and standby time 300hours SIM SIM+TF: nanosim+nanosim/TFCard USB port Type-c, Support OTG Network connections 4G/3G/2GsWi-FisGPRS Notification CueTone; multi-color led; Vibration Keyboard 3 virtual buttons： Backs Home、Menu Audio frequency A microphone, speaker, receiver Working environment Operating temperature -20℃ to 55℃
Humidity 5% to 95% (Non-condensation)
Drop specification Within the working temperature range, it can withstand repeated falls from a height of 1.5 meters to the concrete floor Roll Specification Can Withstand 200 times 1.6 ft/0.5 m rolling impact; meets or exceeds IEC
Vibration Random(10 Hz-30KHz);60 minutes per shaft Electrostatic protection +/- 10kv air discharge +/-6kv contact discharge
Protection level IP67
Wireless Communication WWAN Asia + Europeband: GSM:Band2/3/5/8 WCDMA:Band 1/2/5/8 TD-SCDMA:
Band 34/39 CDMA:Band BCO TDD-LTE:Band 34/38/39/40/41 FDD-LTE:
Band 1/3/5/7/8/20
American band:
GSM:Band2/3/5/8
WCDMA:Band 1/2/4/5 CDMA:Band BCO
TDD-LTE:Band 40/41
FDD-LTE：Band B1/2/4/5/7/28A/28BWIFI Wifi Frequency：2.4GHz&5GHz Protocol：802.11 a/b/g/n/ac/r/e/i
Fast Roamingnavigation Beidoux Glonass、GPS、GalileOxQZSS
Version Bluetooth 5.0 -
Performance Parameter CPU Octa-core 2.0GHz OS Android 11 Memory Standard 4GB+64GB (LPDDR4X+EMMC), Option 3GB+32GB/6G+128G
Data Collection Scanning engine Professional scannersone/two-dimensional barcode
Supported ID barcode types UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code 128, GS1-128,ISBT 128, Code 39,Trioptic Code39, Code32, Code 93, Code 11, Interleaved 2 of 5,Discrete2 of 5,Codabar,MSI,Chinese2 of 5,Korean 3 of 5, Matrix? of 5,Inverse 1D,GS1 DataBar,Composite Codes Supported 2D barcode types PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,
QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse, Postal Codes:
US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal,
Netherlands KIXCode,USPS 4CB/One/lntelligent Mail,UPS FICS PstalCmera Front:5MPFF Rear:13MP AF, and2MP FF secondary camera(optional) Internet of things function NFC working band:13.56MHz Support Protocol： MifareClassic (MFI) NDEF, NfcV (15693) ,Ultraligh(MF0), IsoDep (CPU MF3) JsoDep (CPU) Read Distance：0-5cm RFID Workingband:CHINA： 920-925MHz; USA: 902-928MHZ；EU: 865-868MHz; Protocol： IS018000-6C/EPCC1G2 Read Distance： around 0.8m depends on thetags Security PSAM Supporting ISO7816 standard, supporting 1PSAM cards
Sensors Light Sensor, distance sensor, gravity accelerometer, geomagnetic sensor, Hall Effect Sensor (Optional) Others Certification CE/CCC/UN38.3/ROHS/IP67
Standard accessories 5V/2Aadapter/Data cable/battery/quick guide/UHFtesttag
Optional accessories Charging cradle/charging cradle adapter/battery/temperedglass/hand strap/pistol grip/lanyard
