GMS
-
Android 11
-
Octa-core 2.0GHz
-
5.0”screen
-
3GB RAM+32GB ROM/4GB RAM+64GB ROM
-
4G/Dual-band Wi-Fi
-
IP65
-
High-performance scanner
Most popular model
Latest upgrades meet new market requirements
More than 300,000 units sales volume in over 75 countries and regions

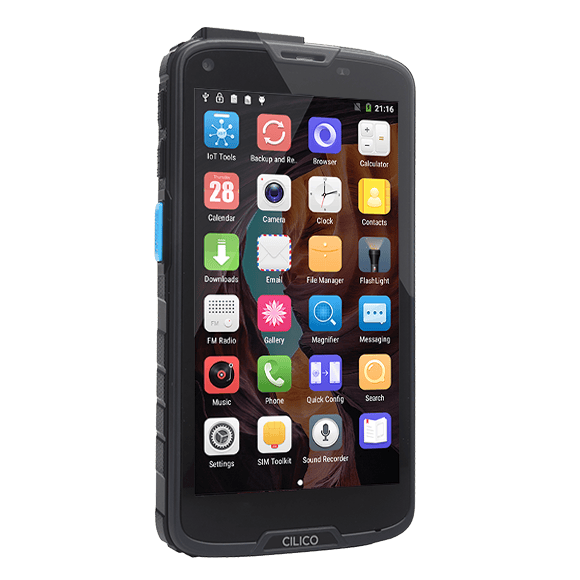

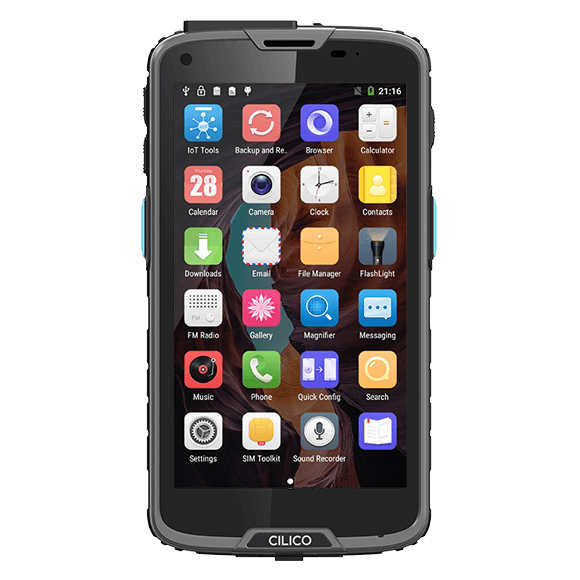

5 inch IPS Screen
Portable design for easy operation
Resolution: 1280*720dpi, visible under strong light
The device can be used with gloves and wet hands
233g weight suit for one-hand operation, reduce long-time working fatigue
IP65 Protection Level and drop-proof
Stronger and Durable
Meet the needs of severe weather (like rain, snow) and special working environments (like water, dust, drop).
Android 11
Latest android version with GMS certification
Ticketing
Strong decoding performance and fast reading ability make sure quickly and accurately read on screens, papers and wristbands
Warehouse management & Logistics
Flexible interface compatible with mainstream WMS, MES
applications.
Smart size, rugged design and excellent industry performance focus
on site environment.
-
Manufacturing
-
Logistics
-
Healthcare
-
Warehouse
-
Ticketing
-
Retail
-
Physical Parameter Size 147×78 ×19mm(L×W×H) Weight 233g (including battery) Display 5.0 inch
IPS screen Resolution: 1280x720Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported Backlight LED Backlight Battery Li-polymer,4000mAh,3.7V
Uptime:more than 8 hours
Standby time:300 hoursCard slot 2 slot for SIM
2 slots for PSAM
1 slot for Micro SD (Maximum 128G)Communication interface Type-c, OTG Keyboard On-screen Keyboard+3 Virtual Keys: Back, Home and Menu Barcode Scanning 2D Scanner Zebra/Honeywell scanning engine 1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc. Camera Camera Front camera: 5 MP
Rear camera：13 MP,auto-focusing
Rear camera flash; support flashlight -
IoT Functions NFC Operating frequency: 13.56MHZ
Support protocol: MifareClassic (MF1) NDEF, NfcV (15693) Ultralight (MF0), IsoDep(Quasi CPU MF3), IsoDep (CPU) Reading distance: 0-5cm
(depending on the type of card)RFID（Optional） Operating frequency:
US: 902-928MHz
EU: 865-868MHz
JP：916-921MHz(w LBT)
JP：916-923MHz
Support protocol: ISO18000-6C/EPC C1G2
Reading distance:0.8m
(depending on the label)Security PSAM Supporting ISO7816 standard
Supporting 2 PSAM cardsSensors Light sensor, distance sensor, gravity acceleration sensor, geomagnetic transmission sensor, Hall sensor (optional) Performance Parameter CPU Octa-core 2.0GHz OS Android 11 Memory 3GB RAM+32GB ROM
4GB RAM+64GB ROMCommunication WWAN GSM/GPRS/WCDMA/CDMA/TD-SCDMA/TDD-LTE/FDD-LTE Wi-Fi Wi-Fi frequency: 2.4GHz & 5GHz
Wi-Fi protocol: 802.11a/b/g/n/acGPS GPS/BDS/GLONASS Bluetooth Bluetooth 5.0 Network connections 4G/3G/2G, Wi-Fi, GPRS, Bluetooth
-
