- Android 7.1/9.0
- Octa-core 2.5GHz
- 5.5” screen
- 3GB RAM/32GB ROM
- 4G/Dual-band Wi-Fi
- Face recognition
- High-performance scanner
It is highly integrated with NFC,1D/2D barcode, UHF RFID all-in-one, also has the dual PSAM card, finger printer recognition etc.
- 1D Scanning
- 2D Scanning
- Face recognition
Professional & Elegant

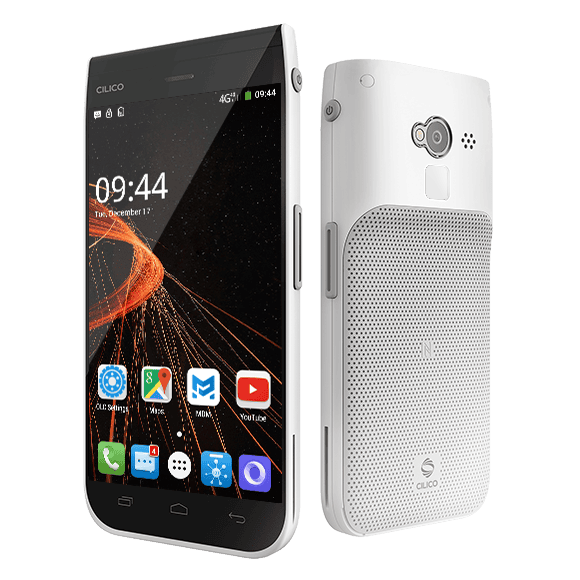

Lotus Series F760 Fashionable Mobile Computer

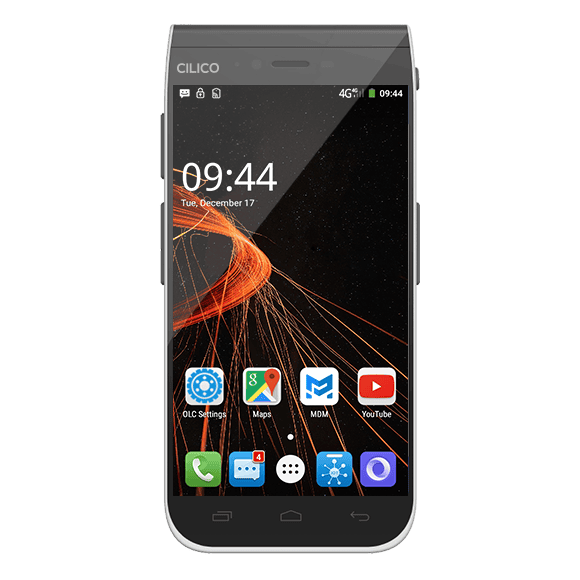

5.5 Inch FHD Gorilla IPS Screen
5.5-inch large screen provides a sufficient display area. Capacitive touch screen provides you simple and flexible multi-touch operation, either wet hands or wearing gloves operates easily and smoothly. When using outdoors, even if the daylight is very bright, you can read the screen easily.
Excellent Scanning Performance
Light and portable(12.99mm, 235g including battery), flexible scanning operation.
Giving users more accurate and efficient scanning experience.
- High-performance scan head
- Deep optimization algorithm
- Flexible multi-angle scanning
Collect data in real time，effectively monitor the status of healthcare organizations.More than 500+ professional medical institutions worldwide have selected F760 as a healthcare mobile computer.
Phone thickness reduced to 12.9mm, elegant appearance, portable and stylish.Popular in high-end stores.
- Store inventory
- inventory check
- Highly integrated scanning
The body is made of antibacterial material, support alcohol wipe.
- Octa-core 2.5GHz
- Dual-band WIFI
- Data stable
Physical Parameter Size 160×76 ×12.9 mm (Length×width×height) Weight 8.3 ounce/235gram (including battery) Display 5.5 inch
IPS screen Resolution: 1920x1080
Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported Backlight LED Backlight Battery Li-polymer, 4200mAh 3.8V
Working up to 8 hours
Standby up to 280 hours
Card slot 1 slot for SIM
2 slots for PSAM
1 slot for Micro SD (Maximum 128G)
Communication interface Micro USB, OTG Network connections 4G/3G/2G, Wi-Fi, GPRS, Bluetooth, GPS, BDS, GLONASS Keyboard On-screen Keyboard+3 Virtual Keys: Back, Home and Menu Performance CPU Octa-core 2.5GHz OS Android 7.1 Memory 3GB RAM/32GB ROM Communication WWAN GSM/GPRS/WCDMA/CDMA/TD-SCDMA/TDD-LTE/FDD-LTE Wi-Fi Wi-Fi frequency: 2.4GHz & 5GHz
Wi-Fi protocol: 802.11a/b/g/n/ac
GPS GPS/BDS/GLONASS Bluetooth Bluetooth 4.2
IoT Functions NFC Operating frequency: 13.56MHz
Support protocol: MifareClassic (MF1), NDEF, NfcV (15693), Ultralight (MF0), IsoDep (Quas:CPU MF3), IsoDep (CPU)
Reading distance: 0-5cm
(depending on the card type)
RFID Operating frequency:
US: 902-928MHz; 4 - 30 dBm (EIRP)
EP: 865-868MHz; 4 - 30dBm (EIRP)
Support protocol: ISO18000-6C/EPC C1G2
Reading distance 80cm
(deponding on the tags and environment)
Security PSAM Supporting ISO7816 standard
Supporting 2 PSAM cards
Sensors Light sensor, proximity sensor, gravity sensor, Hall sensor (optional) Camera Camera Front camera：2-megapixel
Rear camera：8-megapixel auto-focusing ; with LED light, support flashlight
Barcode Scanning 2D Scanner Zebra/Honeywell scanning engine 1D Symbologies UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128,GS1-128, ISBT 128, Code 39,Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5,Inverse 1D,GS1 DataBar, Composite Codes, etc. 2D Symbologies PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QR inverse, Aztec,Aztec Inverse, Postal Codes: US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code, USPS 4CB/One/Intelligent Mail, UPS FICS Postal , etc.
USB CableUSB Cable
Rubber Bumper (optional)Rubber Bumper (optional)
Cradle (optional)Cradle (optional)
Cradle Adapter (optional)Cradle Adapter (optional)
3-Slot Charging Cradle (optional)3-Slot Charging Cradle (optional)
3-Slot Charging Cradle Adapter (optional)3-Slot Charging Cradle Adapter (optional)
Adapter Power Cable (optional)Adapter Power Cable (optional)
