- 1D barcode
- 60m transmission distance
- 2D barcode
- 1.5m drop
CT007X with CILICO patent unique decoding technology, can quickly and accurately decode for a variety of 1D bar code and support Auto scan function.
Scan depth is longer, scanning area is more width, scanning is more accurate.
02 Ergonomic design
With new compact type design of key parts is installed in a female version, no longer require the use of connectors, therefore the part less, design is more reliable.
The streamline design is suitable to any person, comfort grip, eliminate the fatigue of operator.
03 More humanized design
1.ABS thickened material is adopted in designing scanner body,
which has passed the professional test. It still can keep a stable
performance after being dropped from high place more than ten
times and it has aggressive anti-shock and drop-resistance
2.The mechanical life of the button is able to reach more than ten
millions of times.
3.All the operations will get feedback through LED light and
4.The adjustable volume of code-reading.
5.Change the transformat of the materials and the type of barcodes,
etc. through scanning the setup barcodes.
6.The built-in 256Kb storage which can be used for off-line storage
and store more than 2,600 messages.
7.Support multiple language keyboard layout inputs, including
American, British, Germany, Italian, French and Spanish, etc.
8.Wireless transmition distance 60m.

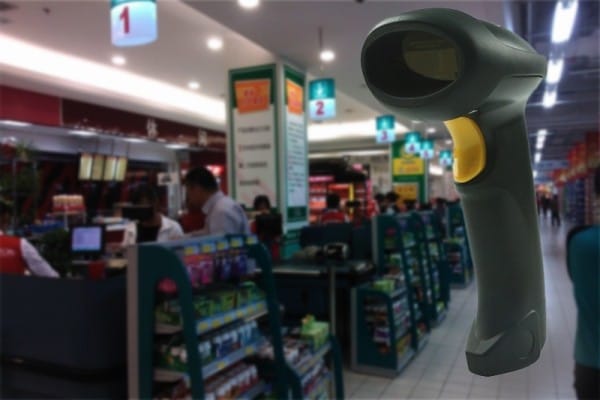

Supermarket retail, public utilities, O2O e-commerce payment
Basic Parameters Light source Laser light 650± 20nm Decode capacity Codabar, Code 11, Code 93, MSI, Code 128, UCC/EAN-128, Code 39, Ean-8, EAN-13, UPC-A, ISBN, Industrial 25, Interleaved 25, Standard 25, etc. Resolution 3-5mil Range of scan distance 60cm Interface USB
Electrical Parameters Operating Temp 0 -50°C Operating Humidity 20-85%(non-condensing） Drop specification Free fall of 1.5M Physical Parameters Material ABS+TPU Size Length160 mm * Width70 mm * Height 92 mm Power supply Built-in chargeable Li-ion battery, 1800mAh Weight 173g
